Werkzeugsysteme mit TOOLSYS®

Who can help me develop my packaging with the right tool?

TOOLsys starts with our packaging development concept Pactivity®

How does ILLIG realize my ideas and requirements?

ILLIG's packaging development is your development partner for realizing new packaging ideas and market demands.

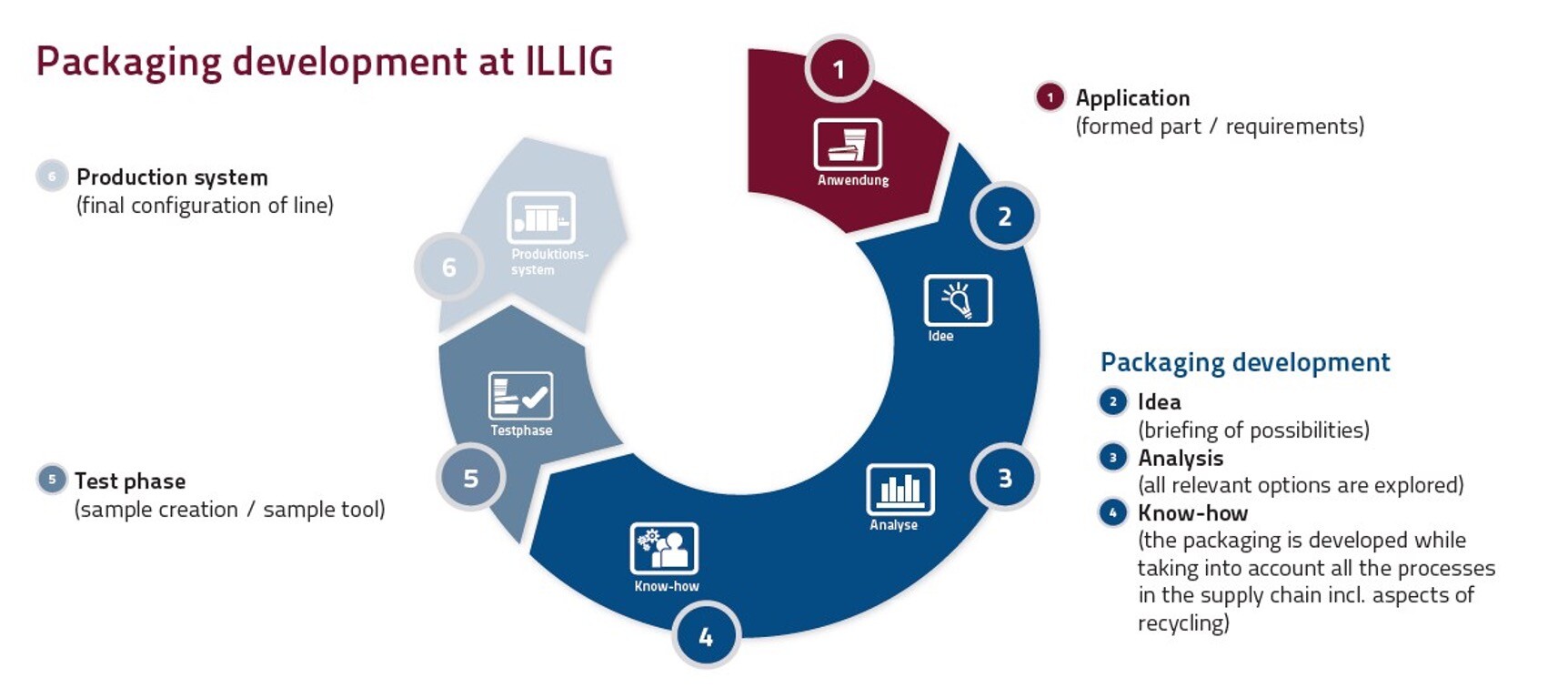

The modern, well-equipped packaging lab consolidates all Pactivity® operations.

  • Fast visualization of machines, tools and formed parts for the customer
  • Optimized test environment for customer and joint projects
  • Flexible options of analyzing customer samples
  • Prototype development with 3D printing
  • Analysis of formed parts and materials as a service to our customers and their suppliers and end customers

What tools do I need for my packaging?

TOOLsys (tool systems) – for increased productivity, more reliable processes and better quality.

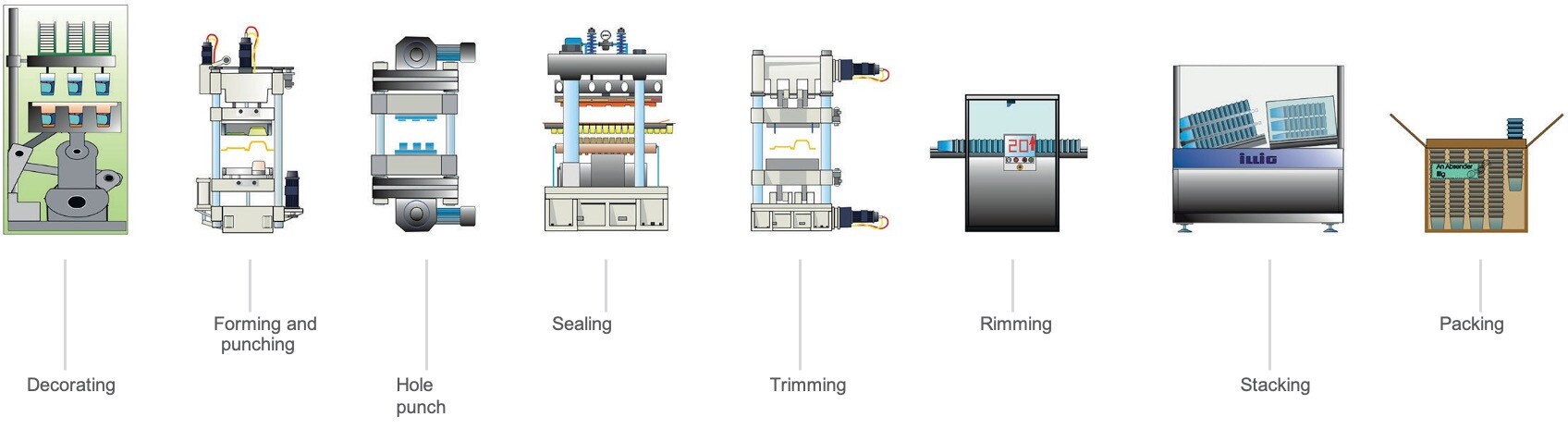

Schematic diagram of master tool set

Schematische Darstellung Master Werkzeugsatz

Which machine is the right one for my packaging?

TOOLsys, as part of ILLIG systems, can help you determine all the necessary tools you will need (tool set) for your ideal production system.

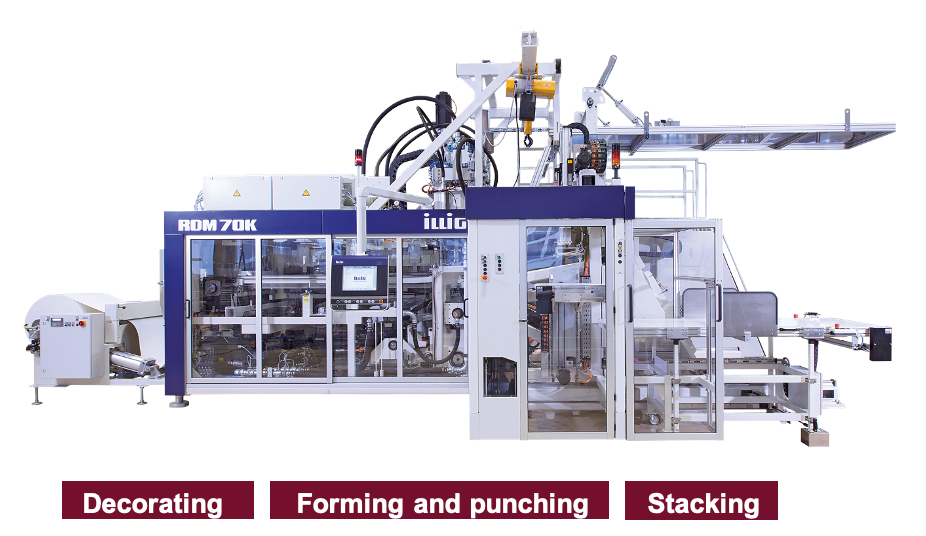

Cup machine with decoration. Example: Tool set for RDM 70Kc + RDML

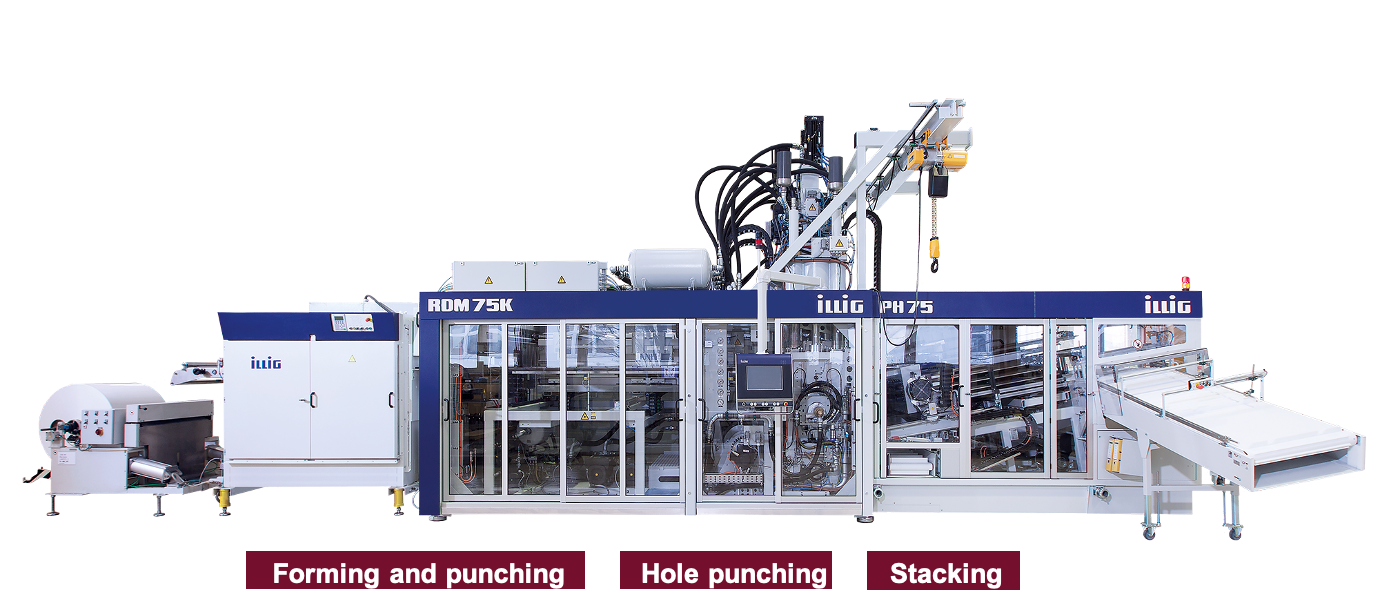

Cup machine. Example: Tool set for RDM 75Kc

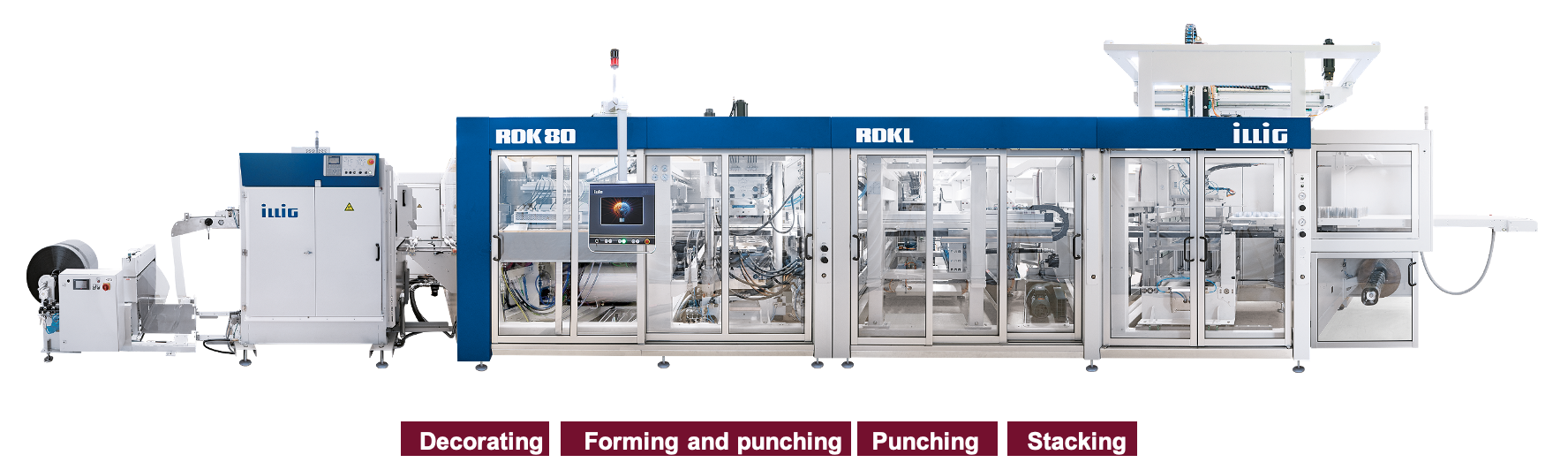

Lid machine with decoration. Example: Tool set for RDK 80k + RDML

Do the design and application functionality come with a guarantee?

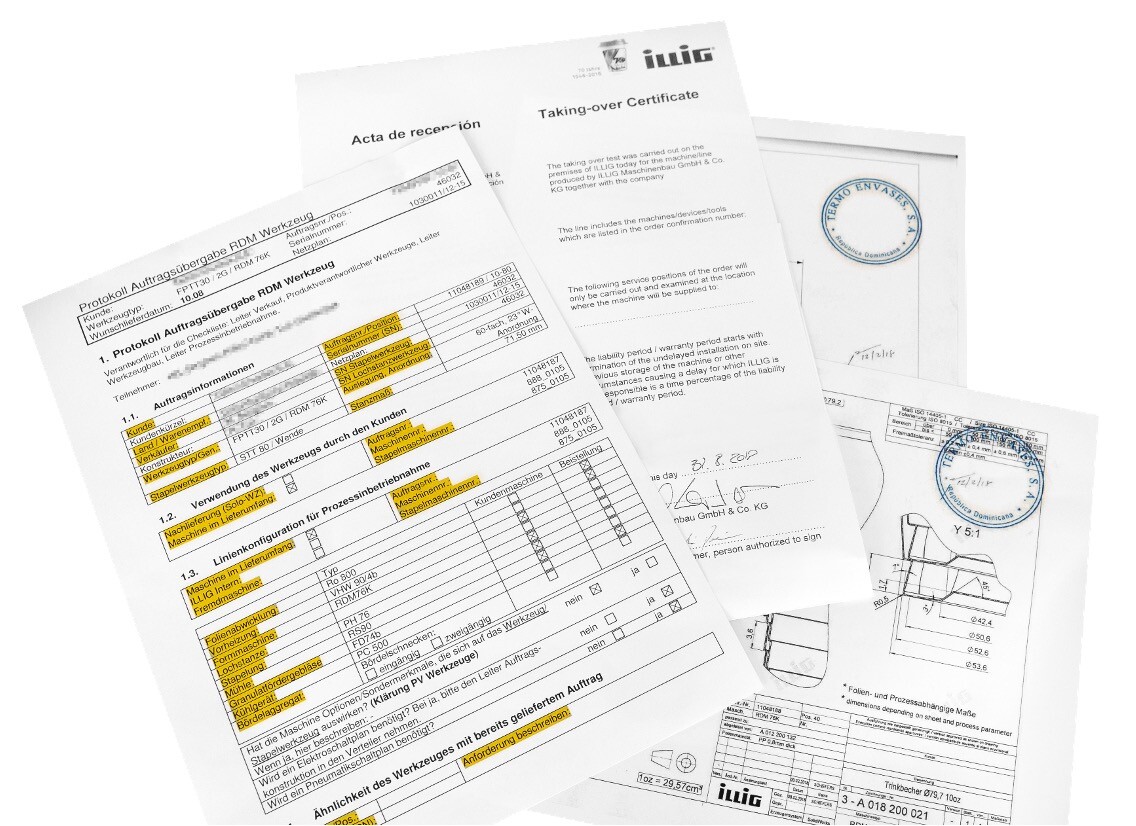

Yes, a test run is performed and the results are recorded in a report.

Tool expertise with guaranteed formed part properties
  • Top-load capacity
  • Lid fit
  • Material thickness
  • Transparency
  • Dimensional tolerance
  • Reproducibility

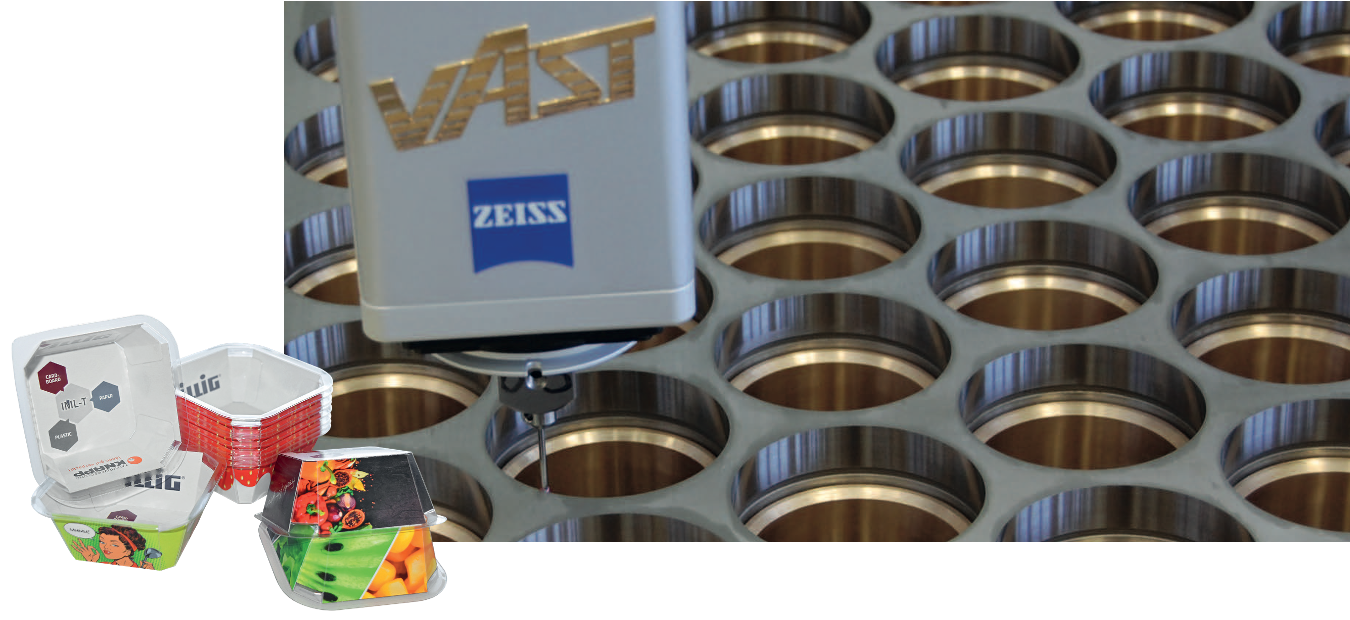

How does ILLIG guarantee the quality of its tools?

Through ILLIG standard precision manufacturing.

  • Modern CNC machines (in climate-controlled manufacturing environment)
  • Perfectly dimensioned forming segments can be re-ordered at any time
  • State-of-the-art digital measuring technology
  • All manufacturing specifications are documented and stored
  • ILLIG can reproduce every single component

What cutting technology does ILLIG use?

Our cutting systems. They give your products the best cut.

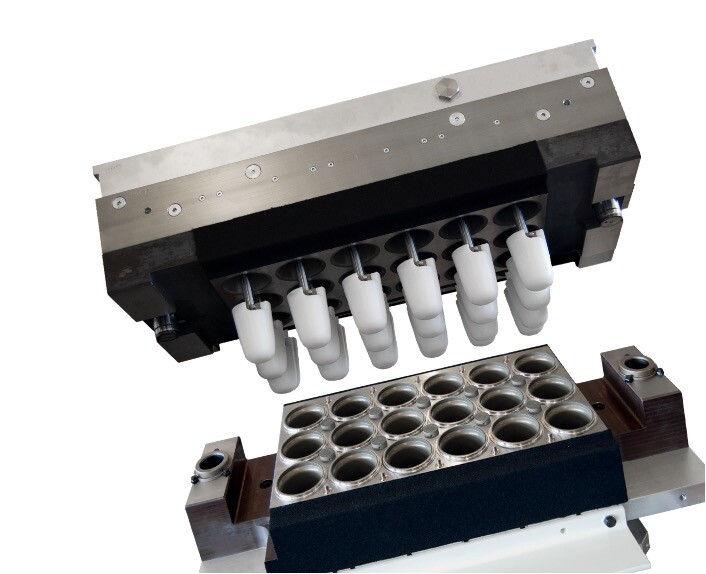

Even a cutting clearance of less than 0.004 mm is possible. At this level of precision, mold inserts can be interchanged with one another, and even replaced later on, without having to perform any refinishing work.

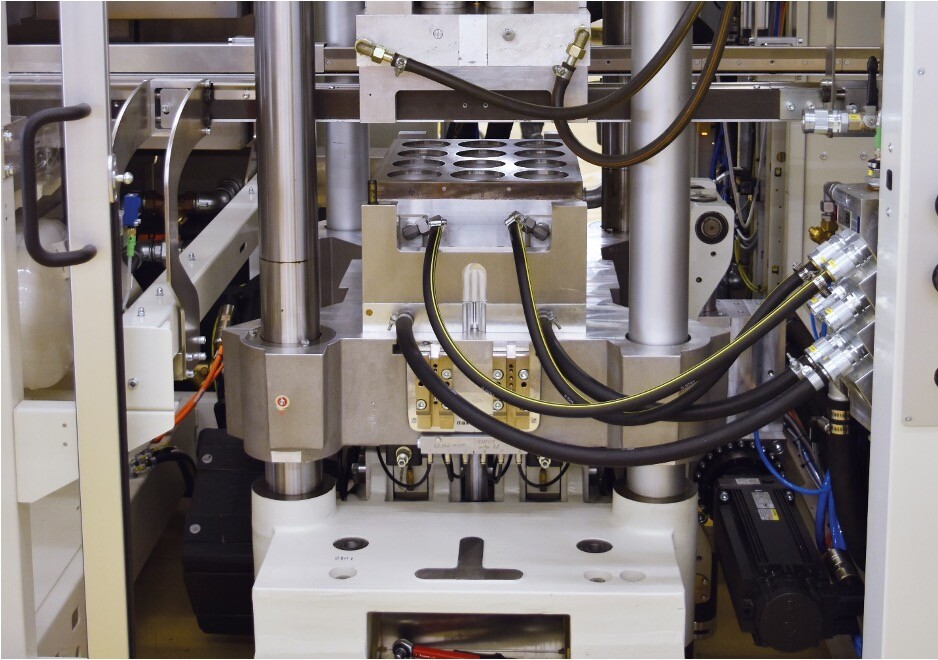

How does ILLIG cool tools for perfect results every time?

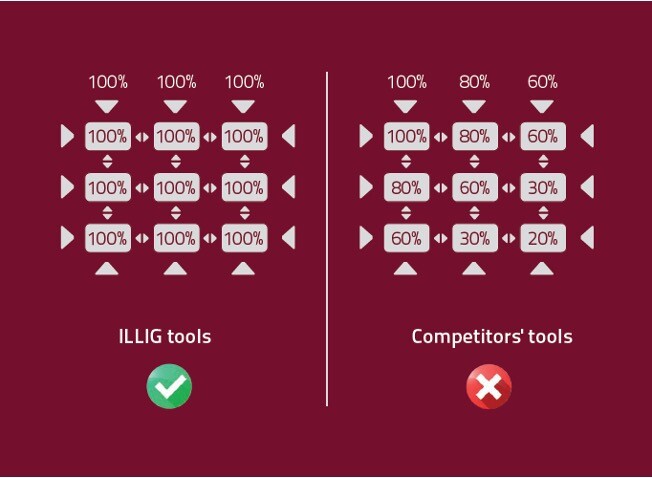

Each of the tool's cavities has the same optimal cooling water pressure.

  • Every format has the same optimal cooling water pressure
  • Every cavity has the same dimensional precision
  • Advantage over the competition

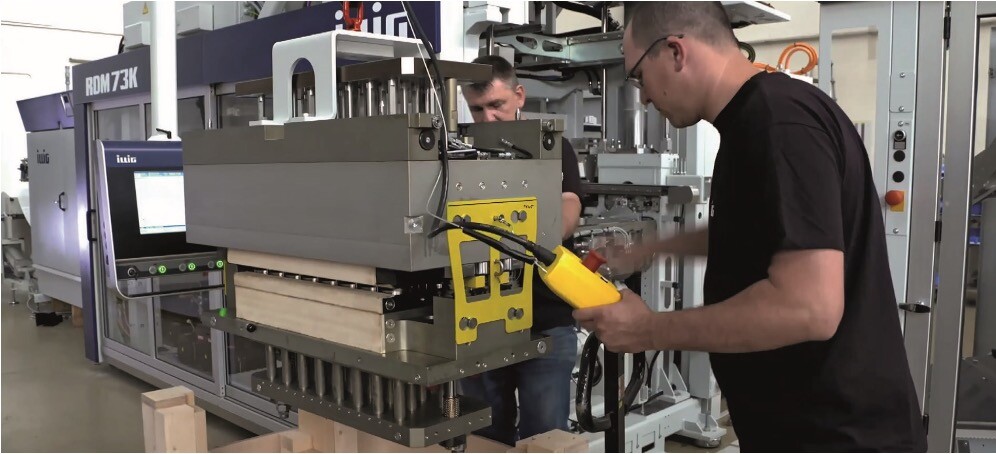

How are tool changes performed?

We guide you step-by-step to make it easy to change your tool.

Accelerated tool change

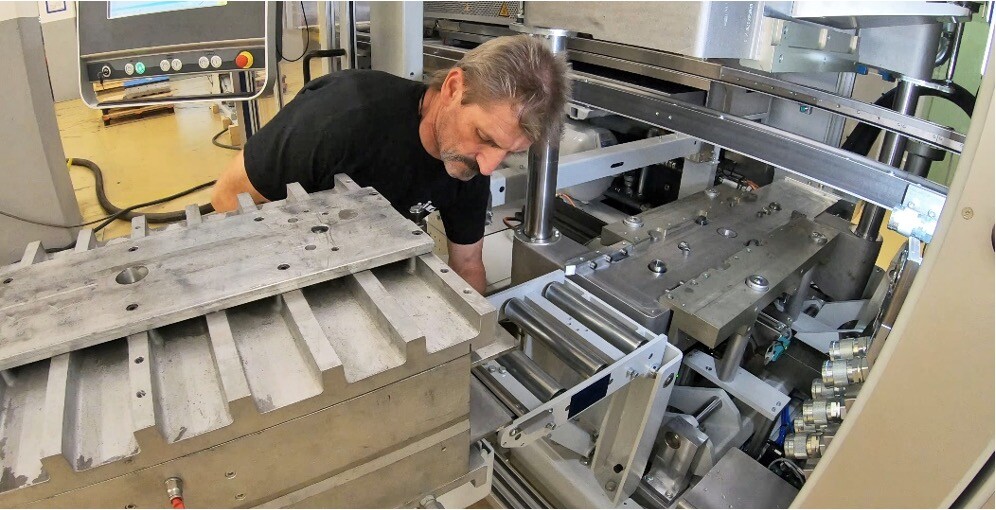

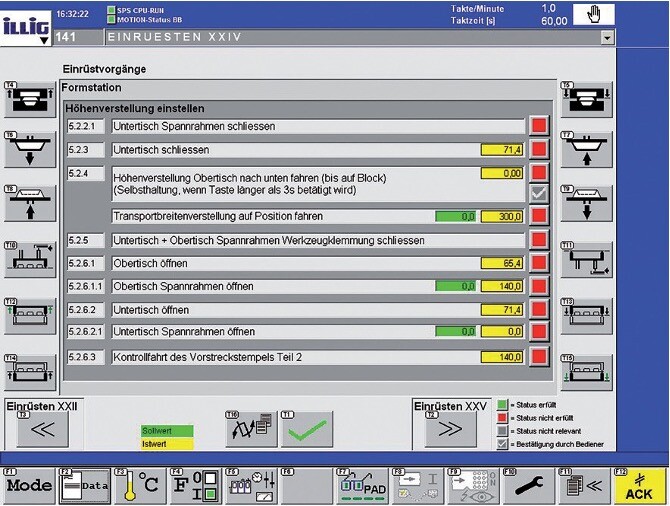

When retooling the machine, the operator is given step-by-step instructions on the control panel on how to proceed. Not only does this save time and make it easier to change the tool and formats, but it also increases the machine's availability.

A long service life—how do ILLIG tools do it?

The superior quality of our thermoforming tools offer several advantages.

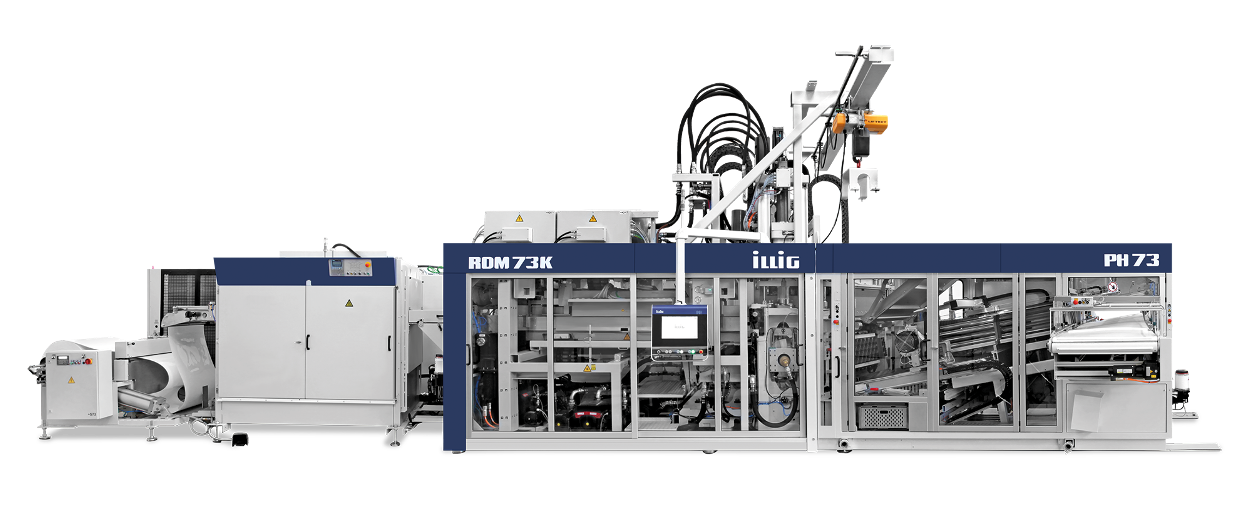

  • A long service life and more than 20 years of spare part availability, guaranteed
  • Minimal distances between cavities for smaller material widths and less material scrap
  • Reproducible processes across all cavities enable the use of thinner material sheets
  • Interfaces to the ILLIG machine software
  • Setting data records and samples ensure process reliability
  • Minimized time for on-site commissioning after process commissioning at ILLIG. This ensures that there is no downtime during manufacturing and the tool can be used immediately.

ILLIG – comprehensive solutions


“Extreme flexibility, short retooling times and nearly zero downtime ensure our successful market awareness. We are very satisfied with ILLIG—their fast support and quick delivery times of spare parts.”

Mr. Noriaki Takeuchi,
Takeuchi Industry Co., Ltd

  • Adapted formats for forming and stacking tools. This ensures absolute process stability.
  • High cycle speeds (including guaranteed cycle speeds on request)
  • Reliable functionality, even for secondary functions.
  • First-class support for process technology.

Who does the maintenance work and repair jobs for my tools?

Our global services and ILLIG spare parts supply.

ILLIG-made products are relied on worldwide
I Global service
I Spare parts
I Service hotline
I ILLIG NetService
I Commissioning
I Machine operator training
I Repairs and maintenance
I Process consulting

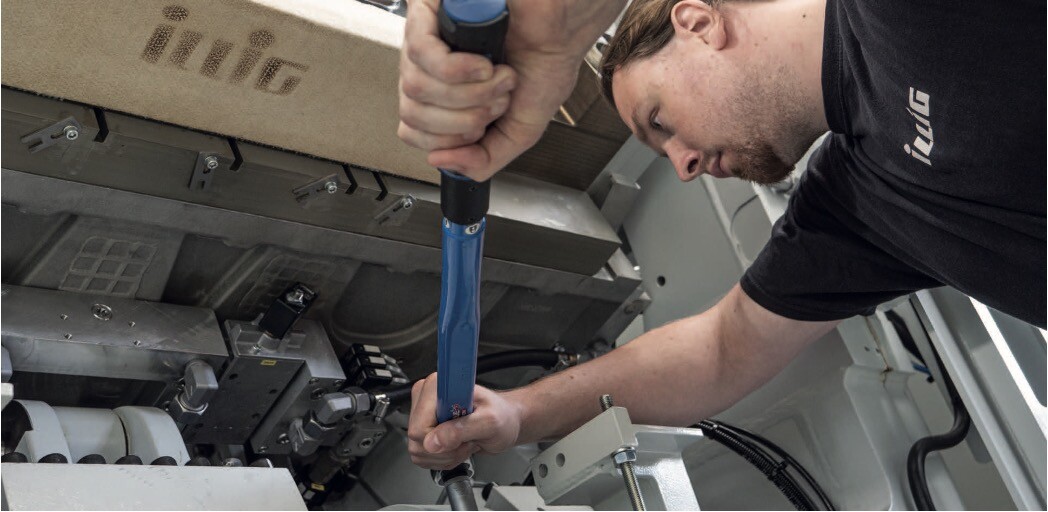

Whether you want tool maintenance to be done on site, or at ILLIG, the choice is yours.


Benefits of on-site maintenance
+ No transport costs/times
+ Decreased downtimes thanks to quicker tool replacement/repair times
+ ILLIG know-how on site
+ Analysis and report of other potential maintenance requirements of other tools to avoid unnecessary downtimes
+ Increased productivity
+ Original ILLIG spare parts
+ Value retention of your tool

Benefits of maintenance at ILLIG
+ More comprehensive maintenance
+ Perfect cut adjustment with the right adjustment device
+ All regrinding work with the right machines
+ On-stock standard parts
+ Increased productivity
+ Original ILLIG spare parts
+ Value retention of your tool

Solutions for tools

Are you looking for an individual solution for your tool?

Tools for ventilation ducts
Tools for ventilation ducts

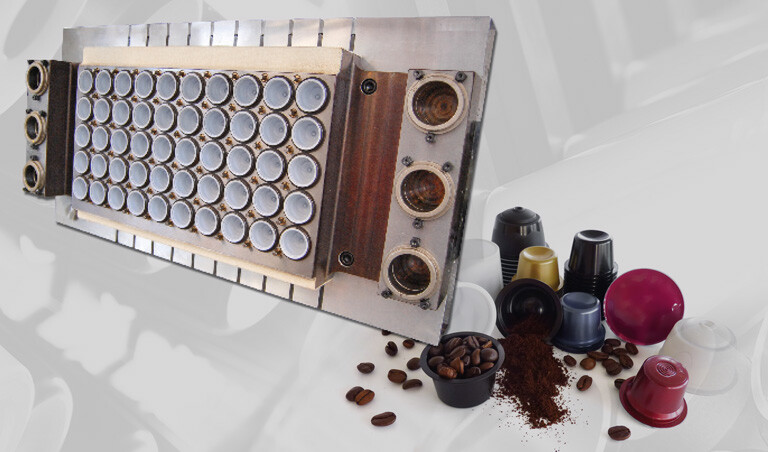

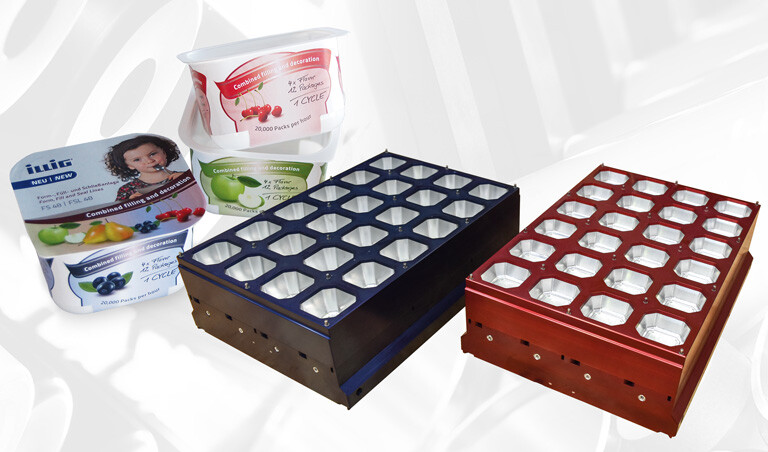

Capsule tools
Capsule tools

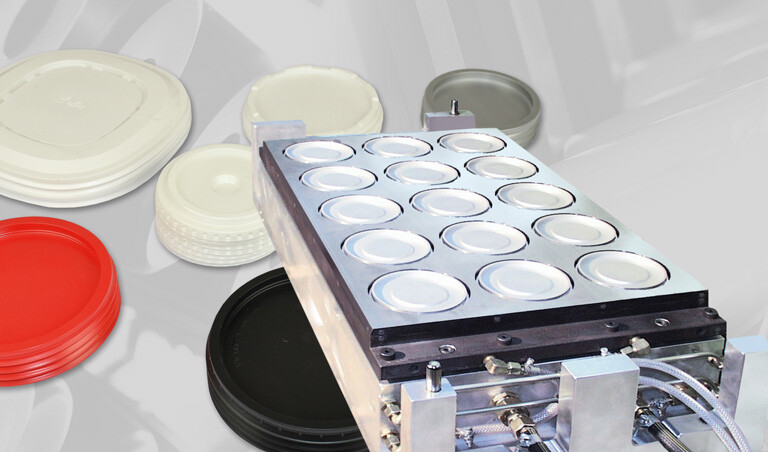

Lid tools
Lid tools
Cup tools
Cup tools
